• Made from nylon-6 (PA-6)
  • Colour: natural
  • Excellent chemical resistance
  • Suitable for both plastic and rubber hoses
  • Applicable in professional and domestic environments
  • Joins 16 mm hoses neatly together

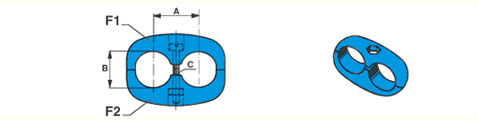

Dimenzije
A 21
B 15
C M3
D
E
F F1
Osnovne informacije
Materijal Nylon-6 (PA-6)
Boja natural

Colour: Colour number:
natural000 XXX XXXX XXXXX

Colour definition : natural
Matches: Milk-like transparent white colour can differ per kind of material.
Featured colours reserved. Due to the screen differences in colour may occur.
Material:Material number:
Nylon-6 (PA-6)01 XXX XXXX XXXXX

Product information
A strong, tough and durable material. Suitable for connecting elements and other technical components. Thanks to self lubricant properties ideal for slide bearings. Always has to acclimatize for a few days after injection moulding, taking approximately 3% moisture to obtain its normal strenght. Operational temperature can go up to 100-120°C temporarily for non-critical parts. Many nylons are self extinguishing.

Physical information
PropertyValueDIN
Relative density (gr/cm³)1.14--
Tensile strength (MN/m²)5553455
Elongation at break (%)25053455
Tensile modulus (MN/m²)95053457
Notched impact strength (kJ/m²)3553453
Ball indentation (MN/m²)8253456
Application temperature (max ºC)120--
Volume resistivity (Ohm.cm)10^1553482
Dissapation factor tan. (10³ Hz)0.253483
Dielectric strength (MV/m)3553481
Coefficient of friction (on steel) (--)0.3--
Chemical resistance
Resistant to
PetrolA
BenzeneA
Mineral oilsA
Vegetable oilsA
Weak alkalisA
Strong alkalisB
Weak acidsB
Strong acidsC

  A = Good
  B = Doubtful
  C = Poor

All information is given in good faith but without warranty


Hose connector [134] (134016000001)

  • Model: 134016000001
  • 0,9878€


  • 50za %s ili više artikala %s po artiklu0,9878€
  • 250za %s ili više artikala %s po artiklu0,7136€
  • 1000za %s ili više artikala %s po artiklu0,6097€

Minimalna količina za ovaj artikl je 50

Discount:

  • from 275€: 10%
  • from 500€: 20%
  • from 1000€: 30%

Price valid until: 31. December, 2024.

Related Products

Part nr. Product name A B C D E F Material Color Price
134016100001 Hose connector [134] (134016100001) 21 15 M3 F2 Nylon-6 (PA-6)

0,9878€
